问题描述

在APIM中配置JWT策略，验证JWT，如果认证失败，则跳转到 Azure Entra ID 的 Login 页面。

问题解答

要实现JWT验证失败后，跳转到 Azure Entra ID 的 Login 页面。需要使用到两种策略：

• validate-jwt ：https://learn.microsoft.com/en-us/azure/api-management/validate-jwt-policy

• return-response : https://learn.microsoft.com/en-us/azure/api-management/return-response-policy

并且需要在<on-error>部分覆写Location值，指定为Login URL：https://login.partner.microsoftonline.cn/<your tenant id or common>/oauth2/v2.0/authorize?response_type=code+id_token&amp;redirect_uri=<redirect_uri>&amp;client_id=<client_id>&amp;scope=openid+profile+email&amp;response_mode=form_post&amp;state=redir%3D%252F

示例Policy为

<policies>
    <inbound>
        <base />
        <validate-jwt header-name="Authorization" failed-validation-httpcode="401" failed-validation-error-message="jwt validation failed" require-expiration-time="false" require-scheme="Bearer" require-signed-tokens="true">
            <openid-config url="https://login.partner.microsoftonline.cn/<your tenant id or common>/v2.0/.well-known/openid-configuration" />
            <audiences>
                <audience>aud name</audience>
            </audiences>
        </validate-jwt>
    </inbound>
    <backend>
        <base />
    </backend>
    <outbound>
        <base />
    </outbound>
    <on-error>
        <base />
        <choose>
            <when condition="@(context.LastError.Source == "validate-jwt")">
                <return-response>
                    <set-status code="302" reason="Unauthorized" />
                    <set-header name="Location" exists-action="override">
                        <value>https://login.partner.microsoftonline.cn/<your tenant id or common>/oauth2/v2.0/authorize?response_type=code+id_token&redirect_uri=<redirect_uri>&client_id=<client_id>&scope=openid+profile+email&response_mode=form_post&state=redir%3D%252F</value>
                    </set-header>
                </return-response>
            </when>
        </choose>
    </on-error>
</policies>

注意：在on error部分设置response的Location时候，需要在Login 的URL参数中连接字符(&)需要用HTML编码符标识为 &amp; ，即在HTML中用&amp;表示&符号

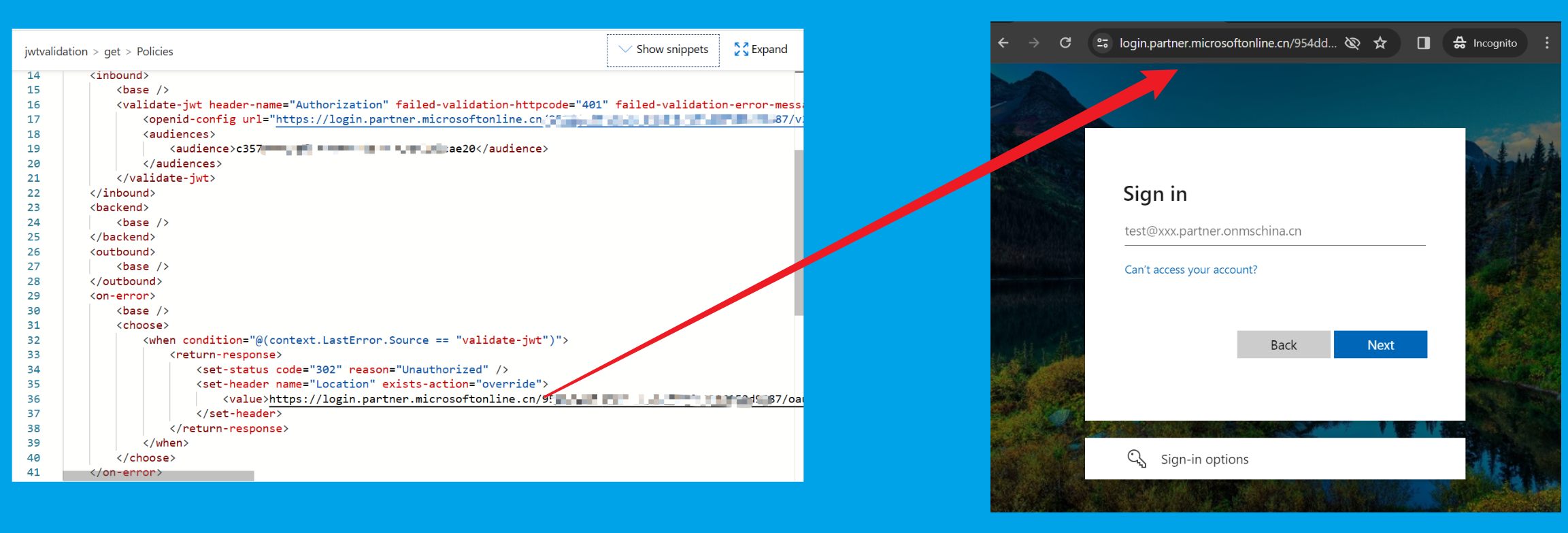

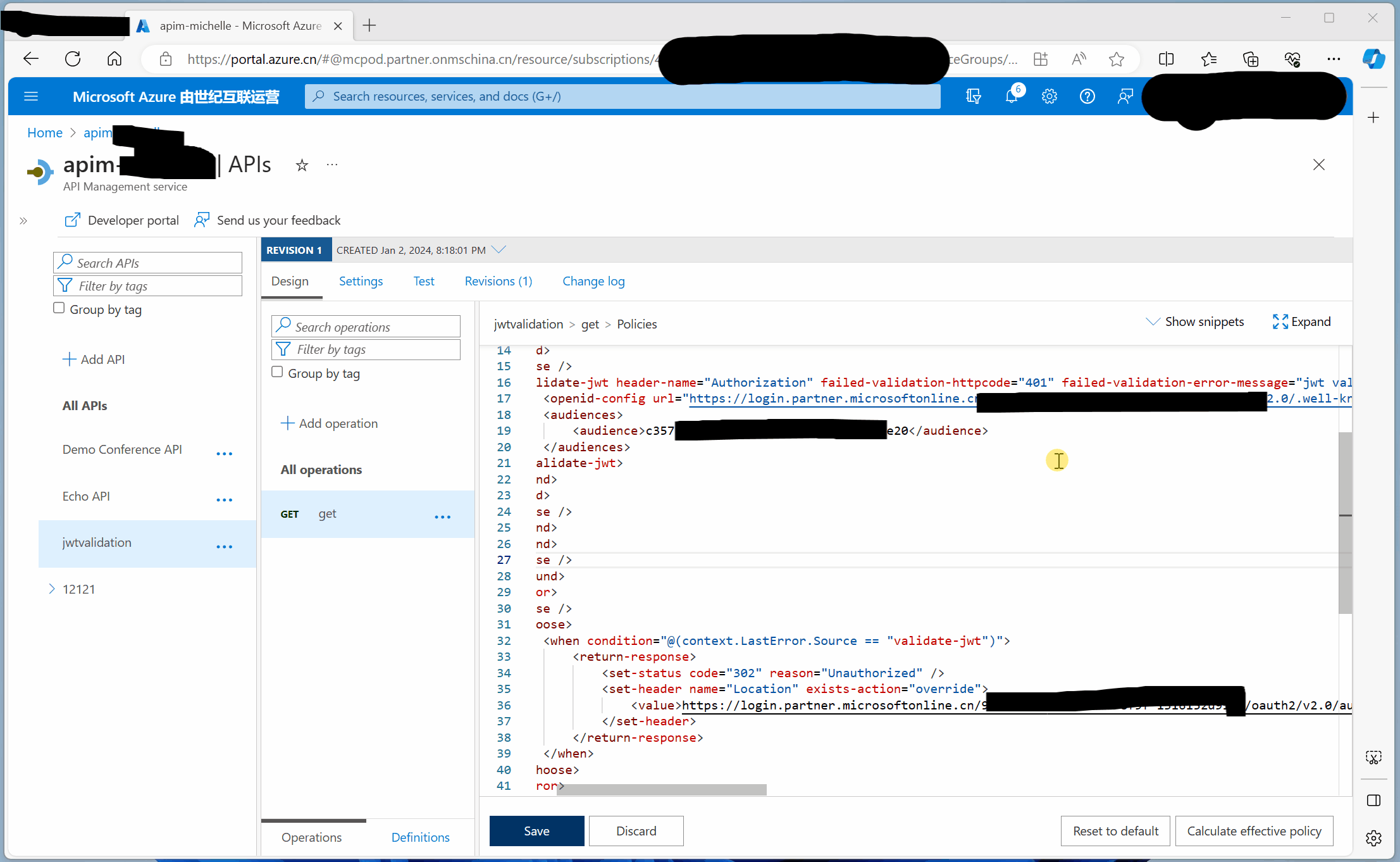

测试效果图

参考资料

配置 JWT 验证策略，对请求进行预授权：https://docs.azure.cn/zh-cn/api-management/api-management-howto-protect-backend-with-aad#configure-a-jwt-validation-policy-to-pre-authorize-requests

Use custom error messages for jwt-validate policy with on-error : https://github.com/Azure/api-management-policy-snippets/blob/master/examples/Use%20custom%20error%20messages%20for%20jwt-validate%20policy%20with%20on-error%20handler.policy.xml

Request an authorization code ： https://learn.microsoft.com/en-us/entra/identity-platform/v2-oauth2-auth-code-flow#request-an-authorization-code
