【Azure Kafka】使用Spring Cloud Stream Binder Kafka 发送并接收 Event Hub 消息及解决并发报错

📅 2025-02-18 👁 0 次浏览 ❤️ 0 次点赞

问题描述

根据 Spring Cloud Stream Binder Kafka 发送消息/接收消息的代码示例，只需要配置好 application.yaml 中的 event hub connection string, Event Hub Name就可以正常运行并查看执行结果。

但是，当使用JMeter作并发测试时候，就会遇见异常,  主要的异常信息为：reactor.core.publisher.Sinks$EmissionException: Spec. Rule 1.3 - onSubscribe, onNext, onError and onComplete signaled to a Subscriber MUST be signaled serially. 这是Sinks中发送者发送消息的时候，调用 onSubscribe、onNext、onError 和 onComplete 必须顺序执行，不能并发操作。

完整的异常日志：



2025-02-18T13:08:34.399+08:00 ERROR 35416 --- [io-8080-exec-41] o.a.c.c.C.[.[.[/].[dispatcherServlet]    :
Servlet.service() for servlet [dispatcherServlet] in context with path [] threw exception [Request processing failed: reactor.core.publisher.Sinks$EmissionException:
**Spec. Rule 1.3 - onSubscribe, onNext, onError and onComplete signaled to a Subscriber MUST be signaled serially.] with root cause**

reactor.core.publisher.Sinks$EmissionException: Spec. Rule 1.3 - onSubscribe, onNext, onError and onComplete signaled to a Subscriber MUST be signaled serially.
	at reactor.core.publisher.InternalManySink.emitNext(InternalManySink.java:56) ~[reactor-core-3.7.2.jar:3.7.2]
	at com.azure.spring.sample.eventhubs.SourceExample.sendMessage(SourceExample.java:22) ~[classes/:na]
	at jdk.internal.reflect.GeneratedMethodAccessor5.invoke(Unknown Source) ~[na:na]
	at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43) ~[na:na]
	at java.base/java.lang.reflect.Method.invoke(Method.java:568) ~[na:na]
	at org.springframework.web.method.support.InvocableHandlerMethod.doInvoke(InvocableHandlerMethod.java:257) ~[spring-web-6.2.2.jar:6.2.2]
	at org.springframework.web.method.support.InvocableHandlerMethod.invokeForRequest(InvocableHandlerMethod.java:190) ~[spring-web-6.2.2.jar:6.2.2]
	at org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:118) ~[spring-webmvc-6.2.2.jar:6.2.2]
	at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:986) ~[spring-webmvc-6.2.2.jar:6.2.2]
	at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:891) ~[spring-webmvc-6.2.2.jar:6.2.2]
	at org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:87) ~[spring-webmvc-6.2.2.jar:6.2.2]
	at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1088) ~[spring-webmvc-6.2.2.jar:6.2.2]
	at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:978) ~[spring-webmvc-6.2.2.jar:6.2.2]
	at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1014) ~[spring-webmvc-6.2.2.jar:6.2.2]
	at org.springframework.web.servlet.FrameworkServlet.doPost(FrameworkServlet.java:914) ~[spring-webmvc-6.2.2.jar:6.2.2]
	at jakarta.servlet.http.HttpServlet.service(HttpServlet.java:590) ~[tomcat-embed-core-10.1.34.jar:6.0]
	at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:885) ~[spring-webmvc-6.2.2.jar:6.2.2]
	at jakarta.servlet.http.HttpServlet.service(HttpServlet.java:658) ~[tomcat-embed-core-10.1.34.jar:6.0]
	at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:195) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:140) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:51) ~[tomcat-embed-websocket-10.1.34.jar:10.1.34]
	at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:164) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:140) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.springframework.web.filter.RequestContextFilter.doFilterInternal(RequestContextFilter.java:100) ~[spring-web-6.2.2.jar:6.2.2]
	at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:116) ~[spring-web-6.2.2.jar:6.2.2]
	at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:164) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:140) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.springframework.web.filter.FormContentFilter.doFilterInternal(FormContentFilter.java:93) ~[spring-web-6.2.2.jar:6.2.2]
	at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:116) ~[spring-web-6.2.2.jar:6.2.2]
	at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:164) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:140) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:201) ~[spring-web-6.2.2.jar:6.2.2]
	at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:116) ~[spring-web-6.2.2.jar:6.2.2]
	at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:164) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:140) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:167) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:90) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:483) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:115) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:344) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:397) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:905) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1741) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:52) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1190) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:659) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:63) ~[tomcat-embed-core-10.1.34.jar:10.1.34]
	at java.base/java.lang.Thread.run(Thread.java:833) ~[na:na]



问题解答

错误的原因主要是在发送消息的方法中使用了 Sinks.EmitFailureHandler.FAIL_FAST参数，这个参数表示只要发送消息失败，不进行任何重试，直接返回异常。

在Sinks类中，因无法使用 EmitResult 中的其它参数来代替EmitFailureHandler.FAIL_FAST， 所以只能使用 tryEmitNext 方法来缓解此问题。



参考资料

Sending and Receiving Message by Azure Event Hubs and Spring Cloud Stream Binder Kafka in Spring Boot Application : https://github.com/Azure-Samples/azure-spring-boot-samples/tree/main/eventhubs/spring-cloud-azure-starter/spring-cloud-azure-sample-eventhubs-kafka

【Azure 事件中心】Spring Cloud Stream Event Hubs Binder 发送Event Hub消息遇见 Spec. Rule 1.3 - onSubscribe, onNext, onError and onComplete signaled to a Subscriber MUST be signaled serially 异常 ：https://www.cnblogs.com/lulight/p/17357267.html



附录：代码源文件

为使得完整的示例代码能成功运行，附上 pom.xml, application.yaml ,  EventHubKafkaBinderApplication.java 和 SourceExample.java 文件

pom.xml 内容如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://maven.apache.org/POM/4.0.0"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>3.4.2</version>
    <relativePath/> <!-- lookup parent from repository -->
  </parent>

  <groupId>com.azure.spring</groupId>
  <artifactId>spring-cloud-azure-sample-eventhubs-kafka</artifactId>
  <version>1.0.0</version>
  <packaging>jar</packaging>

  <name>Communicate to Event Hubs via Spring Cloud Stream Kafka Binder</name>

  <properties>
    <maven.compiler.source>17</maven.compiler.source>
    <maven.compiler.target>17</maven.compiler.target>
    <version.spring.cloud>2024.0.0</version.spring.cloud>
    <version.spring.cloud.azure>5.20.0</version.spring.cloud.azure>
  </properties>

  <dependencyManagement>
    <dependencies>
      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>${version.spring.cloud}</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
      <dependency>
        <groupId>com.azure.spring</groupId>
        <artifactId>spring-cloud-azure-dependencies</artifactId>
        <version>${version.spring.cloud.azure}</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <dependencies>
    <!-- Add the spring-cloud-azure-resourcemanager dependency when want to use the Azure Resource Manager to retrieve connection string   -->
    <!--
    <dependency>
      <groupId>com.azure.spring</groupId>
      <artifactId>spring-cloud-azure-resourcemanager</artifactId>
    </dependency>
    -->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
      <groupId>com.azure.spring</groupId>
      <artifactId>spring-cloud-azure-starter</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-stream-kafka</artifactId>
    </dependency>
  </dependencies>

</project>

View Code

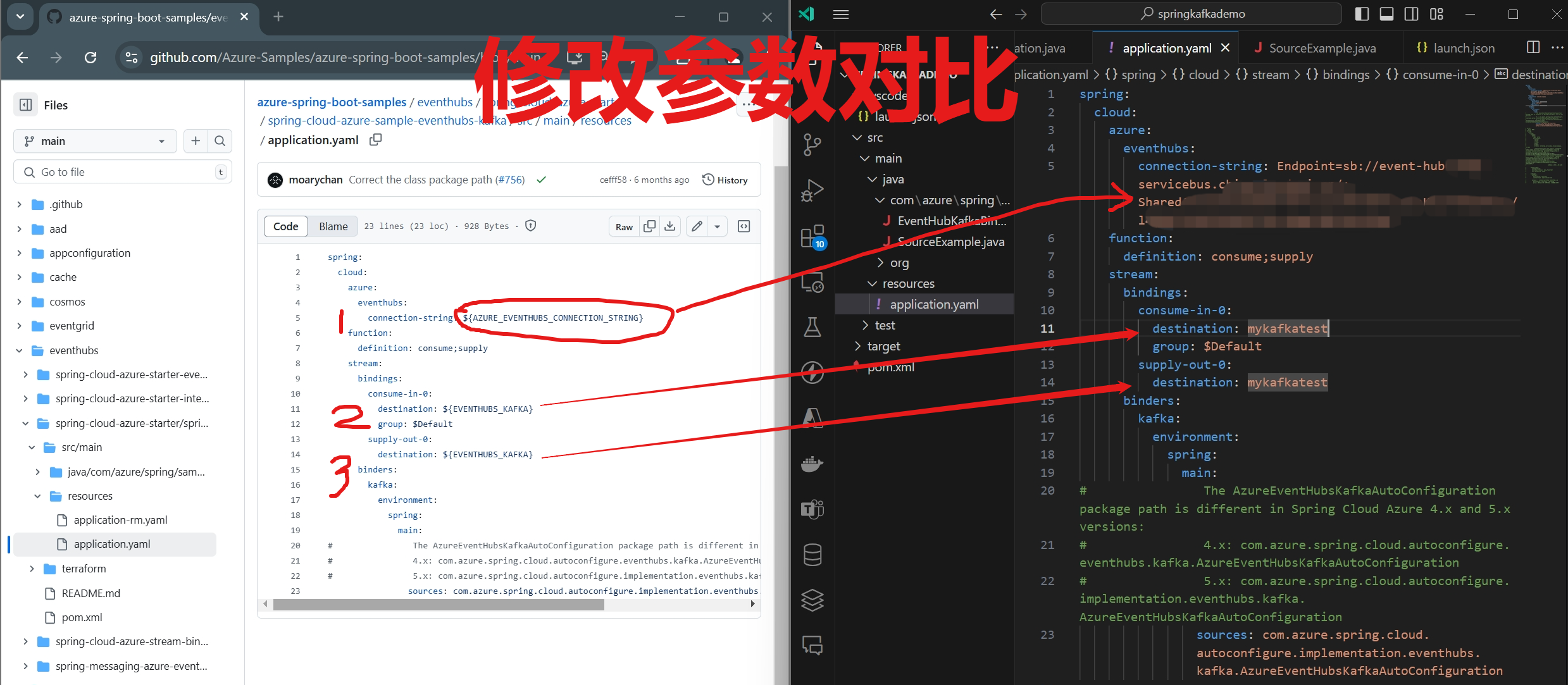

application.yaml  内容如下：

spring:
  cloud:
    azure:
      eventhubs:
        connection-string: ${AZURE_EVENTHUBS_CONNECTION_STRING}
    function:
      definition: consume;supply
    stream:
      bindings:
        consume-in-0:
          destination: ${EVENTHUBS_KAFKA}
          group: $Default
        supply-out-0:
          destination: ${EVENTHUBS_KAFKA}
      binders:
        kafka:
          environment:
            spring:
              main:
#                The AzureEventHubsKafkaAutoConfiguration package path is different in Spring Cloud Azure 4.x and 5.x versions:
#                4.x: com.azure.spring.cloud.autoconfigure.eventhubs.kafka.AzureEventHubsKafkaAutoConfiguration
#                5.x: com.azure.spring.cloud.autoconfigure.implementation.eventhubs.kafka.AzureEventHubsKafkaAutoConfiguration
                sources: com.azure.spring.cloud.autoconfigure.implementation.eventhubs.kafka.AzureEventHubsKafkaAutoConfiguration

View Code



EventHubKafkaBinderApplication.java  内容如下：

// Copyright (c) Microsoft Corporation. All rights reserved.
// Licensed under the MIT License.
package com.azure.spring.sample.eventhubs;

import java.util.function.Consumer;
import java.util.function.Supplier;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;
import org.springframework.messaging.Message;

import reactor.core.publisher.Flux;
import reactor.core.publisher.Sinks;
/**
 * @author Bu Lu
 */
@SpringBootApplication
public class EventHubKafkaBinderApplication {
    private static final Logger LOGGER = LoggerFactory.getLogger(EventHubKafkaBinderApplication.class);
    public static void main(String[] args) {
        SpringApplication.run(EventHubKafkaBinderApplication.class, args);
    }
    @Bean
    public Sinks.Many<Message<String>> many() {
        return Sinks.many().unicast().onBackpressureBuffer();
    }
    @Bean
    public Supplier<Flux<Message<String>>> supply(Sinks.Many<Message<String>> many) {
        return () -> many.asFlux()
                         .doOnNext(m -> LOGGER.info("Manually sending message {}", m))
                         .doOnError(t -> LOGGER.error("Error encountered", t));
    }
    @Bean
    public Consumer<Message<String>> consume() {
        return message -> LOGGER.info("New message received: '{}'", message.getPayload());
    }
}

View Code

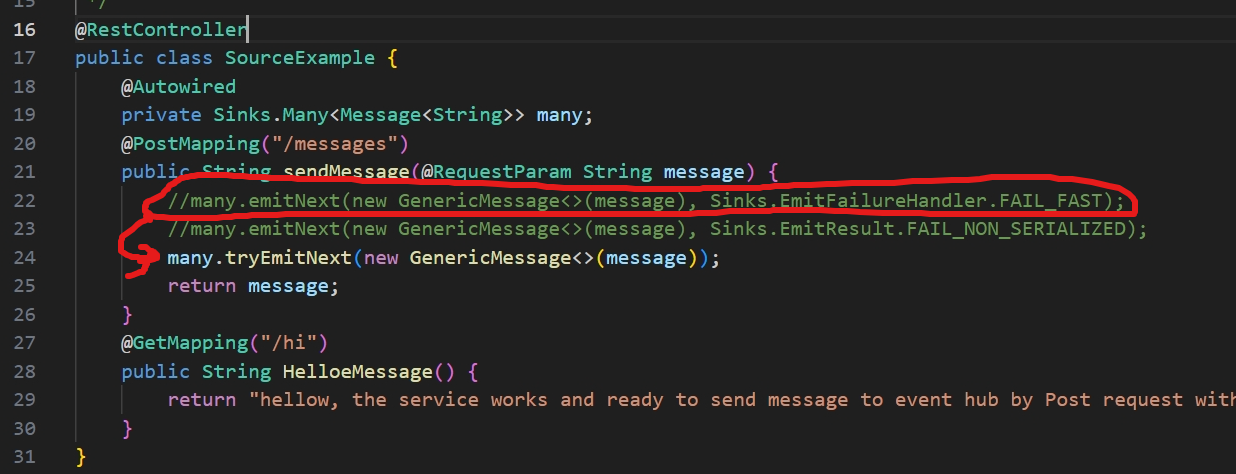

SourceExample.java 内容如下：

// Copyright (c) Microsoft Corporation. All rights reserved.
// Licensed under the MIT License.
package com.azure.spring.sample.eventhubs;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.messaging.Message;
import org.springframework.messaging.support.GenericMessage;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import reactor.core.publisher.Sinks;
/**
 * @author Bu Lu
 */
@RestController
public class SourceExample {
    @Autowired
    private Sinks.Many<Message<String>> many;
    @PostMapping("/messages")
    public String sendMessage(@RequestParam String message) {
        //many.emitNext(new GenericMessage<>(message), Sinks.EmitFailureHandler.FAIL_FAST);
        //many.emitNext(new GenericMessage<>(message), Sinks.EmitResult.FAIL_NON_SERIALIZED);
        many.tryEmitNext(new GenericMessage<>(message));
        return message;
    }
    @GetMapping("/hi")
    public String HelloeMessage() {
        return "hellow, the service works and ready to send message to event hub by Post request with message parameter.";
    }
}

View Code
